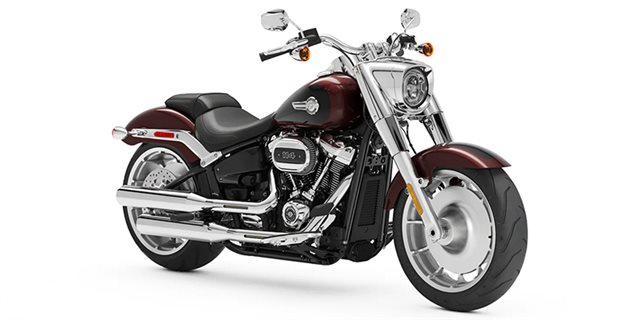

2022 Harley-Davidson Fat Boy 114  Featured

Stock #PI01355
Your Price: $18,495
Check Availability Hi, my name is and I'm interested in this 2022 Harley-Davidson Softail Fat Boy 114 . I'm in the area and you can reach me at or on my phone at .



Description



The original fat custom icon, now with bright chrome finishes



This is the right bike for:

  • Hot rod riders who like bright chrome and a steamroller stance
  • Commanding the road with fat tires and a squared-up headlamp
  • Milwaukee-Eight® 114 V-Twin engine and Lakester disc wheels

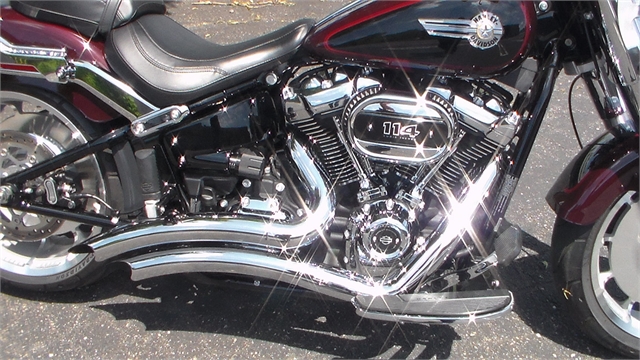

Milwaukee-Eight® Big Twin Engine

A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble.



Bright Chrome Finishes

An all-you-can eat portion of sculpted bright chrome gives the Fat Boy motorcycle a look that’ll make a big impact



Steamroller Stance

A muscular look thanks to solid-disc Lakester wheels wrapped in the widest front tire we’ve ever offered from the factory at 160mm combined with a rear tire at 240mm



Signature LED Forward Lighting

Darkness-defying lighting that gives you great visibility at night.



High Performance Front Suspension

Sophisticated suspension technology provides the performance of a racing-style cartridge fork for reduced weight with linear damping characteristics.



High Performance Rear Mono Shock

Easily adjustable mono-shock rear suspension allows for dynamic cornering while preserving the hardtail look.

  • Status:
    Pre-Owned
  • Vehicle:
    2022 Harley-Davidson Fat Boy 114
  • VIN:
    1HD1YGK13NB051983
  • Model Number:
    FLFBS
  • Mileage:
    4,132 miles
  • Color:
    Two-Tone Midnight Crimson / Vivid Black
  • Stock Number:
    PI01355
  • Title:
    Clear
  • Location:
    Dick Scott's Freedom Powersports
  • Warranty:
    As Is

AUDIO & COMMUNICATION

  • Bluetooth® Audio:
    Yes
  • Mobile App Instrumentation:
    Yes

BRAKES

  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

CONVENIENCE

  • Engine Immobilizer Brand:
    Digitally Encoded Security System™ (DESS)

ENGINE

  • Bore (in):
    4.02
  • Bore (mm):
    102.1
  • CAN Liters Per Kilometer (Combined):
    4.8
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.5
  • Cooling:
    Oil
  • Cylinders:
    2
  • Displacement (cc):
    1868
  • Displacement (ci):
    114
  • Engine Brand Name:
    Milwaukee-Eight™ 114
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    4.5
  • Stroke (mm):
    114.3
  • Torque (Ft Lbs):
    119
  • Torque (Nm):
    161.3
  • Torque RPM:
    3000
  • US Miles Per Gallon (Combined):
    49
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Belt Guard:
    Yes
  • Body Material:
    Steel
  • Floor Board Location:
    Driver
  • Foot Peg Location:
    Passenger
  • Fork Guards:
    Yes
  • Frame:
    Steel
  • Side Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Folding:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

LIGHTS

  • Type:
    LED

SEATS

  • Number Of Seats:
    2
  • Seat Height (in):
    26.6
  • Seat Height (mm):
    675.6
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Leather
  • Seat Type:
    Two-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Air Adjustable:
    Yes
  • Front Suspension Size (in):
    1.9
  • Front Suspension Size (mm):
    49
  • Front Suspension Type:
    Telescopic Fork
  • Front Travel (in):
    5.1
  • Front Travel (mm):
    130
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Size (in):
    1.7
  • Rear Suspension Size (mm):
    43
  • Rear Suspension Type:
    Twin Sided Swing Arm

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    304.4
  • Dry Weight (lbs):
    671
  • Engine Displacement to Weight (cc):
    2.78
  • Fuel Capacity (gal):
    5
  • Fuel Capacity (l):
    18.9
  • Ground Clearance (in):
    4.5
  • Ground Clearance (mm):
    115
  • GVWR (kgs):
    533
  • GVWR (lbs):
    1175
  • Height (in):
    43.1
  • Height (mm):
    1095
  • Length (ft):
    7.78
  • Length (ft/ft):
    7
  • Length (ft/in):
    9.3
  • Length (in):
    93.3
  • Length (mm):
    2370
  • Payload Capacity (kgs):
    216
  • Payload Capacity (lbs):
    476
  • Wet Weight (kg):
    317.1
  • Wet Weight (lbs):
    699
  • Wheelbase (in):
    65.6
  • Wheelbase (mm):
    1665
  • Width (in):
    38.8
  • Width (mm):
    985

TRANSMISSION

  • Gear Ratio (1):
    9.311
  • Gear Ratio (2):
    6.454
  • Gear Ratio (3):
    4.793
  • Gear Ratio (4):
    3.882
  • Gear Ratio (5):
    3.307
  • Gear Ratio (6):
    2.79
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Brand:
    Six-Speed Cruise Drive®
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Michelin® Scorcher® 11 160/60 R18 70V
  • Front Tire Aspect Ratio:
    60
  • Front Tire Speed Rating:
    V
  • Front Tire Width:
    160
  • Front Wheel Diameter:
    18
  • Rear Tire (Full Spec):
    Michelin® Scorcher® 11 240/40 R18 79V
  • Rear Tire Aspect Ratio:
    40
  • Rear Tire Speed Rating:
    V
  • Rear Tire Width:
    240
  • Rear Wheel Diameter:
    18
  • Tire Brand:
    Michelin®
  • Wheels Composition:
    Aluminum
